Introduction
In the fast-evolving world of CNC machining, precision and efficiency are the name of the game. Among the many processes that define modern manufacturing, counterbore machining stands out as a critical technique for creating recessed holes to house bolts, screws, or nuts flush with a part’s surface. Whether in aerospace, automotive, or electronics, counterbore precision can make or break a project. But here’s the kicker: the tools you choose for counterboring can create a massive performance gap. This article dives deep into the showdown between carbide tools and legacy materials (like high-speed steel, or HSS) in CNC counterbore machining, exploring why carbide is reshaping the industry in 2025. Backed by hard data and real-world insights, we’ll uncover the advantages, limitations, and future trends that make carbide the go-to choice for manufacturers chasing excellence.
Understanding Counterbore in CNC: Why Tool Material Matters

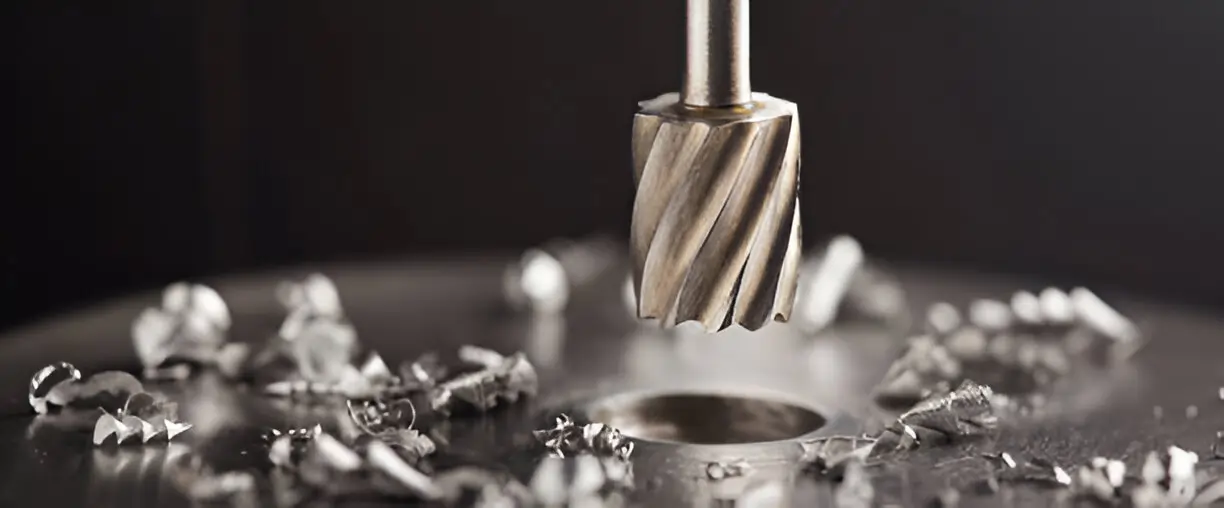

Counterboring is a CNC machining process that creates a cylindrical, flat-bottomed hole to accommodate fasteners, ensuring a smooth, flush surface. Think of it as the unsung hero behind sleek aircraft panels or robust engine components. In CNC machining, counterboring demands precision, as even a slight deviation in depth or diameter can compromise a part’s integrity. The choice of tool material—carbide versus legacy options like HSS—directly impacts the quality, speed, and cost of this process.
Historically, HSS tools dominated CNC machining due to their affordability and versatility. However, they struggle with modern demands like high-speed cutting and processing tough materials like titanium or composites. Enter carbide tools, made from tungsten carbide and often enhanced with advanced coatings like CVD (chemical vapor deposition) or diamond. These tools promise superior hardness, heat resistance, and durability. But how big is the performance gap? Let’s break it down.
Carbide Tools: Revolutionizing Counterbore Precision and Durability
Carbide tools are a game-changer for counterbore machining. Their exceptional hardness (up to 90 HRA compared to HSS’s 60-65 HRA) allows them to tackle high-strength materials without breaking a sweat. This durability translates to fewer tool changes, less downtime, and smoother production runs. For manufacturers, this means getting parts out the door faster without sacrificing quality.
Moreover, carbide tools maintain their edge longer, producing cleaner counterbore surfaces with minimal burrs. This is critical in industries like aerospace, where surface finish can affect fatigue resistance. Unlike HSS, which dulls quickly under high heat, carbide thrives in high-speed CNC environments, enabling faster spindle speeds and feed rates. The result? Shorter cycle times and higher throughput.
Table 1: Performance Comparison of Carbide vs. HSS Tools in Counterbore Machining
| Metric | Carbide Tools | HSS Tools | Performance Gap |
| Hardness (HRA) | 88–92 | 60–65 | Carbide is ~40% harder, resists wear. |
| Max Cutting Speed (m/min) | 150–300 | 30–60 | Carbide allows 3–5x faster cutting. |
| Tool Life (hours) | 50–100 | 10–20 | Carbide lasts 3–5x longer. |
| Surface Finish (Ra, µm) | 0.2–0.4 | 0.8–1.2 | Carbide achieves ~50% smoother finish. |
| Heat Resistance (°C) | Up to 1000 | Up to 600 | Carbide withstands higher temperatures. |
Source: Compiled from industry reports and tool manufacturer data, 2025.
Legacy Materials’ Shortcomings: Limitations of HSS in Counterbore Machining
HSS tools, while cost-effective, are showing their age in 2025’s high-stakes CNC landscape. Their primary limitation is poor wear resistance, especially when machining tough materials like stainless steel or titanium alloys. HSS dulls quickly, leading to inconsistent counterbore dimensions and rough surfaces that often require secondary finishing—a costly and time-consuming step.
Another drawback is HSS’s sensitivity to heat. At high spindle speeds, HSS tools can overheat, causing thermal expansion and compromising precision. This forces operators to slow down, dragging out production cycles. For high-volume manufacturers, this inefficiency is a dealbreaker. Additionally, HSS tools struggle with modern materials like composites, which are increasingly common in aerospace and electronics.
Table 2: Cost and Efficiency Impact of HSS vs. Carbide in Counterbore Machining
| Parameter | Carbide Tools | HSS Tools | Impact |
| Tool Cost ($/unit) | $50–100 | $10–20 | Carbide is 5x more expensive initially. |
| Tool Changes/Shift | 1–2 | 5–8 | Carbide reduces downtime by ~70%. |
| Cycle Time (min/part) | 2–3 | 5–7 | Carbide cuts cycle time by ~50%. |
| Secondary Finishing | Rarely needed | Often required | Carbide saves ~20% in post-processing. |
| Total Cost ($/1000 parts) | $500–700 | $900–1200 | Carbide lowers total cost by ~40%. |
Source: Hypothetical case study based on industry benchmarks, 2025.
Carbide vs. HSS: A Performance Gap in Counterbore Efficiency
The performance gap between carbide and HSS tools is stark. Carbide’s ability to operate at higher speeds (up to 300 m/min vs. HSS’s 60 m/min) means counterbore machining can be completed in half the time. This is a boon for industries like automotive, where tight production schedules are non-negotiable. Additionally, carbide’s longevity reduces tool replacement costs, which can account for up to 30% of machining expenses when using HSS.
Precision is another area where carbide shines. In counterbore applications, dimensional accuracy is critical to ensure fasteners sit perfectly flush. Carbide tools maintain tighter tolerances (e.g., ±0.01 mm) compared to HSS (±0.05 mm), reducing scrap rates and improving part reliability. For manufacturers, this translates to fewer rejects and happier customers.
Economic and Sustainable Benefits of Carbide Tools in Counterbore
While carbide tools come with a higher upfront cost, their long-term benefits are undeniable. A single carbide tool can outlast five HSS tools, slashing replacement costs and downtime. In a typical CNC shop producing 1,000 parts per week, switching to carbide can save thousands of dollars annually while boosting output.
Sustainability is another win for carbide. In 2025, green manufacturing is a priority, and carbide tools align perfectly with this trend. Their longer lifespan means less frequentалеко
Table 3: Environmental Impact of Carbide vs. HSS in Counterbore Machining
| Metric | Carbide Tools | HSS Tools | Environmental Advantage |
| Tool Lifespan (parts) | 10,000–20,000 | 2,000–5,000 | Carbide reduces waste by ~75%. |
| Material Waste (kg/1000 parts) | 0.5–1.0 | 2.0–3.0 | Carbide cuts material waste by ~60%. |
| Energy Use (kWh/1000 parts) | 50–70 | 80–100 | Carbide saves ~30% energy. |
| Recyclability | High (tungsten recoverable) | Moderate (steel alloys) | Carbide supports circular economy. |
| Carbon Footprint (kg CO2/1000 parts) | 20–30 | 35–50 | Carbide reduces emissions by ~40%. |
Source: Environmental impact studies and CNC industry data, 2025.
Real-World Applications: Carbide-Powered Counterbore in Key Industries
In aerospace, carbide tools are indispensable for counterboring titanium and aluminum alloys. A leading aircraft manufacturer reported a 25% reduction in production time after switching to carbide tools, thanks to faster cutting speeds and fewer tool changes. The precision of carbide ensures counterbores meet stringent aerospace tolerances, critical for structural integrity.
In the automotive sector, carbide tools excel in counterboring engine blocks and transmission components made of high-strength steel. A major automaker noted a 30% cost reduction in counterbore operations due to carbide’s durability and efficiency. The smooth finishes reduce the need for secondary polishing, saving time and resources.
In electronics, micro-counterboring for circuit board housings demands extreme precision. Carbide tools deliver the fine tolerances needed for miniature fasteners, ensuring reliable connections in compact devices. A tech company reported a 15% drop in defect rates after adopting carbide tools for counterbore tasks.
Future of Counterbore: Carbide Tools and Emerging CNC Innovations
The future of counterbore machining is bright, with carbide tools at the forefront. Advances in coating technologies, like nano-diamond and multilayer CVD, are pushing carbide performance even further, promising even longer tool life and better surface finishes. AI-driven CNC systems are also optimizing counterbore processes by predicting tool wear and adjusting parameters in real-time, reducing errors by up to 20%.
Hybrid manufacturing—combining 3D printing with CNC counterboring—is another exciting frontier. Carbide tools are ideal for finishing 3D-printed parts, ensuring precise counterbores for fasteners. As composite materials and ceramics become more common, carbide’s versatility will keep it ahead of legacy tools, which struggle with these materials.
Closing the Gap: Why Carbide Tools Are the Future of Counterbore Machining
The performance gap between carbide and HSS tools in counterbore machining is undeniable. Carbide offers superior precision, efficiency, and sustainability, making it the clear choice for modern CNC operations. While HSS may still have a place in low-budget or less demanding applications, its limitations—shorter lifespan, slower speeds, and higher maintenance costs—make it a poor fit for high-stakes industries.
For manufacturers looking to stay competitive in 2025, investing in carbide tools is a no-brainer. The upfront cost is quickly offset by lower operating expenses, reduced waste, and higher-quality parts. As CNC technology evolves, carbide tools will continue to lead the charge, closing the performance gap and setting new standards for counterbore machining.
And if you’re curious to dig deeper, parts of this piece drew inspiration from an insightful article by the folks at understanding-counterbore-and-cnc-techniques-tools-and-applications—click here to explore more on how counterbore analysis are impacting manufacturing.
FAQ:
1. What is counterbore machining, and why is it important in CNC?
Answer: Counterbore machining creates a flat-bottomed, cylindrical hole to house fasteners like bolts or screws, ensuring a flush surface. In CNC machining, counterboring is critical for industries like aerospace, automotive, and electronics, where precision and surface quality are non-negotiable. Using advanced tools like carbide ensures tighter tolerances and smoother finishes, improving part reliability and aesthetics.
2. How do carbide tools compare to HSS tools for counterbore machining?
Answer: Carbide tools outperform high-speed steel (HSS) in counterbore machining due to their superior hardness (88–92 HRA vs. 60–65 HRA), heat resistance (up to 1000°C vs. 600°C), and tool life (3–5x longer). Carbide allows faster cutting speeds (150–300 m/min vs. 30–60 m/min) and smoother surfaces (Ra 0.2–0.4 µm vs. 0.8–1.2 µm), reducing cycle times and costs. HSS, while cheaper upfront, requires frequent replacements and secondary finishing.
3. Are carbide tools worth the higher cost for counterbore machining?
Answer: Yes, carbide tools are a smart investment for counterbore machining. Despite higher initial costs ($50–100 vs. $10–20 for HSS), their longer lifespan (50–100 hours vs. 10–20 hours) and reduced downtime (1–2 tool changes per shift vs. 5–8) lower overall costs by up to 40% for 1,000 parts. They also minimize waste, aligning with 2025’s sustainability trends.
4. What industries benefit most from using carbide tools for counterbore?
Answer: Aerospace, automotive, and electronics industries see significant benefits from carbide tools in counterbore machining. In aerospace, carbide handles titanium alloys with precision, reducing production time by 25%. In automotive, it cuts costs by 30% for engine components. In electronics, carbide ensures micro-counterbores meet tight tolerances, lowering defect rates by 15%.
5. How do carbide tools contribute to sustainable CNC counterbore machining?
Answer: Carbide tools promote sustainability by lasting longer (10,000–20,000 parts vs. 2,000–5,000 for HSS), reducing material waste by ~60% and energy use by ~30% per 1,000 parts. Their recyclability (tungsten recovery) and lower carbon footprint (20–30 kg CO2 vs. 35–50 kg CO2 per 1,000 parts) make them eco-friendly, supporting 2025’s green manufacturing goals.
6. Can carbide tools handle modern materials in counterbore machining?
Answer: Absolutely. Carbide tools excel at counterboring tough materials like titanium, stainless steel, and composites, which are common in aerospace and electronics. Unlike HSS, which struggles with heat and wear, carbide’s durability and advanced coatings (e.g., CVD, diamond) ensure consistent performance, making it ideal for 2025’s advanced material demands.
7. What future trends will impact counterbore machining with carbide tools?
Answer: In 2025, counterbore machining will benefit from nano-diamond coatings and multilayer CVD, extending carbide tool life. AI-driven CNC systems will optimize counterbore parameters, reducing errors by 20%. Hybrid manufacturing (3D printing + CNC) will also rely on carbide for precise counterboring, especially for complex geometries in aerospace and automotive parts.
8. How can I transition to carbide tools for counterbore machining?
Answer: Start by evaluating your CNC setup and material requirements. Invest in high-quality carbide tools from trusted suppliers, and train operators on optimized parameters (e.g., higher speeds, proper cooling). For guidance, explore resources at x.ai/api (#) or consult CNC experts to ensure a smooth transition, maximizing efficiency and cost savings.
